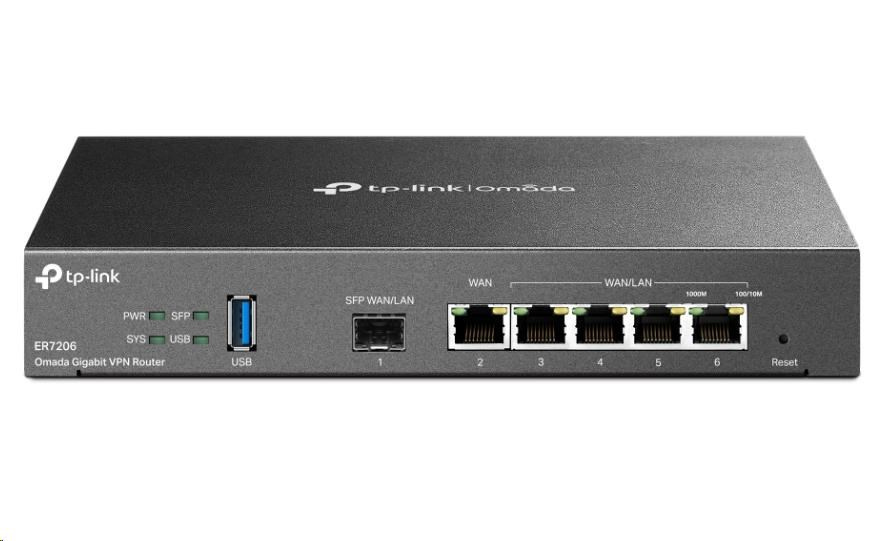

TP-Link ER7206 [SafeStream Gigabit Multi-WAN VPN Router]
![TP-Link ER7206 [SafeStream Gigabit Multi-WAN VPN Router]](https://www.futurelineshop.cz/imgcache/0/b/p438611-1582611-0a_-1_-1_55868.jpg "TP-Link ER7206 [SafeStream Gigabit Multi-WAN VPN Router]")
Popis a parametry
Diskuse
TP-Link ER7206 [SafeStream Gigabit Multi-WAN VPN Router]
TP-Link ER7206
Gigabitový VPN router Omada
- Integrováno do platformy Omada SDN - Funkce ZTP (Zero-Touch Provisioning), centralizovaná cloudová správa a inteligentní monitorování.
- Centralizovaná správa - Cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu.
- Gigabitové porty - 1 gigabitový port SFP a 5 gigabitových portů RJ45 poskytují vysokorychlostní kabelové připojení.
- Až 4 porty WAN - 1 gigabitový port SFP WAN, 1 gigabitový port RJ45 WAN, 2 gigabitové porty WAN/LAN optimalizují využití šířky pásma.
- VPN s vysokým zabezpečením - Podporuje připojení až 100× LAN-LAN IPsec, 50× OpenVPN, 50× L2TP a 50× PPTP VPN.
- Mnoho funkcí zabezpečení - Pokročilé zásady firewallu, ochrana proti útokům DoS, filtrování adres IP/MAC/URL a další bezpečnostní funkce na ochranu vaší sítě a dat.
Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er7206/
Technické specifikace
| HARDWARE FEATURES | |
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |

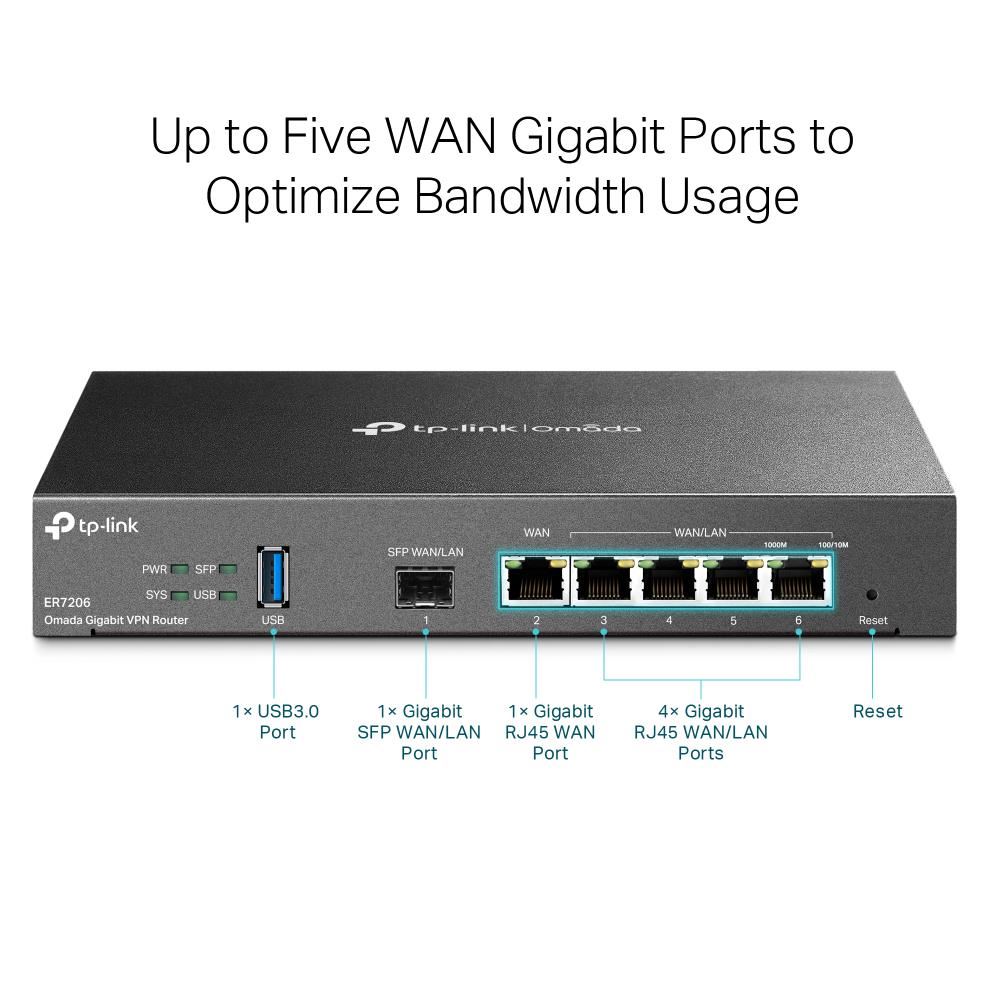

| Interface | • 1 Fixed Gigabit SFP WAN Port • 1 Fixed Gigabit RJ45 WAN Port • 2 Fixed Gigabit RJ45 LAN Ports • 2 Changeable Gigabit RJ45 WAN/LAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100? STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100? STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Button | Reset Button |
| Power Supply | 100–240 V~50/60 Hz |
| Flash | SPI 4MB + NAND 128MB |
| DRAM | 512MB |
| LED | PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| PERFORMANCE | |
| Concurrent Session | 150 |
| New Sessions /Second | 5,5 |
| NAT (Static IP) | 940.3 Mbps / 940.2 Mbps |
| NAT(DHCP) | 940.3 Mbps / 940.4 Mbps |
| NAT(PPPoE) | 939.7 Mbps / 937.9 Mbps |
| NAT (L2TP) | 918.0 Mbps / 917.9 Mbps |
| NAT (PPTP) | 918.9 Mbps / 914.7 Mbps |
| IPsec VPN Throughput (AES256) | 291.6 Mbps |
| IPsec VPN Throughput | 291.6 Mbps |
| L2TP VPN Throughput | Unencrypted: 1360.3 Mbps Encrypted: 202.3 Mbps |
| PPTP VPN Throughput | Unencrypted: 1379.3 Mbps Encrypted: 115.6 Mbps |
| 66 Byte Packet forwarding rate | 486,918 pps / 488,372 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 81,274 pps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static/Dynamic IP • PPPoE • PPTP • L2TP |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server • DHCP Address Reservation • Multi-IP Interfaces* • Multi-Net DHCP* |
| IPv6 | Developing‡ |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing |
| Bandwidth Control | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection |
| NAT | • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security | • SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2* • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • 10 PPTP VPN Clients • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • 10 L2TP VPN Clients • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server* • 10 OpenVPN Clients* • 50 OpenVPN Tunnels* |
| SECURITY | |
| Filtering | WEB Group Filtering§ URL Filtering Web Security§ |
| ARP Inspection | • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| Access Control | Source/Destination IP Based Access Control |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password* • Hotspot(Local User / Voucher* / SMS* / Radius*) • External Radius Sever • External Portal Sever* • Facebook* |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning) |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER7206 • Power Cord • Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F); • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
.
ParametryPorovnání
Zabezpečení
Základní/Firewall
Počet portů
Ostatní
Typ zařízení
Router
