GIGABYTE MB Sc AM4 A520 AORUS ELITE, AMD A520, 4xDDR4, HDMI, DVI

Name: GIGABYTE MB Sc AM4 A520 AORUS ELITE, AMD A520, 4xDDR4, HDMI, DVI
Brand: Gigabyte
SKU: 524128
Price: 2223 CZK
Availability: InStock

zdarma

-NaN%

GIGABYTE MB Sc AM4 A520 AORUS ELITE, AMD A520, 4xDDR4, HDMI, DVI

Kód: 524128

EAN: 4719331809812

Záruka: 36 Měsíc(ů)

Výrobce: Gigabyte

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

Diskuse

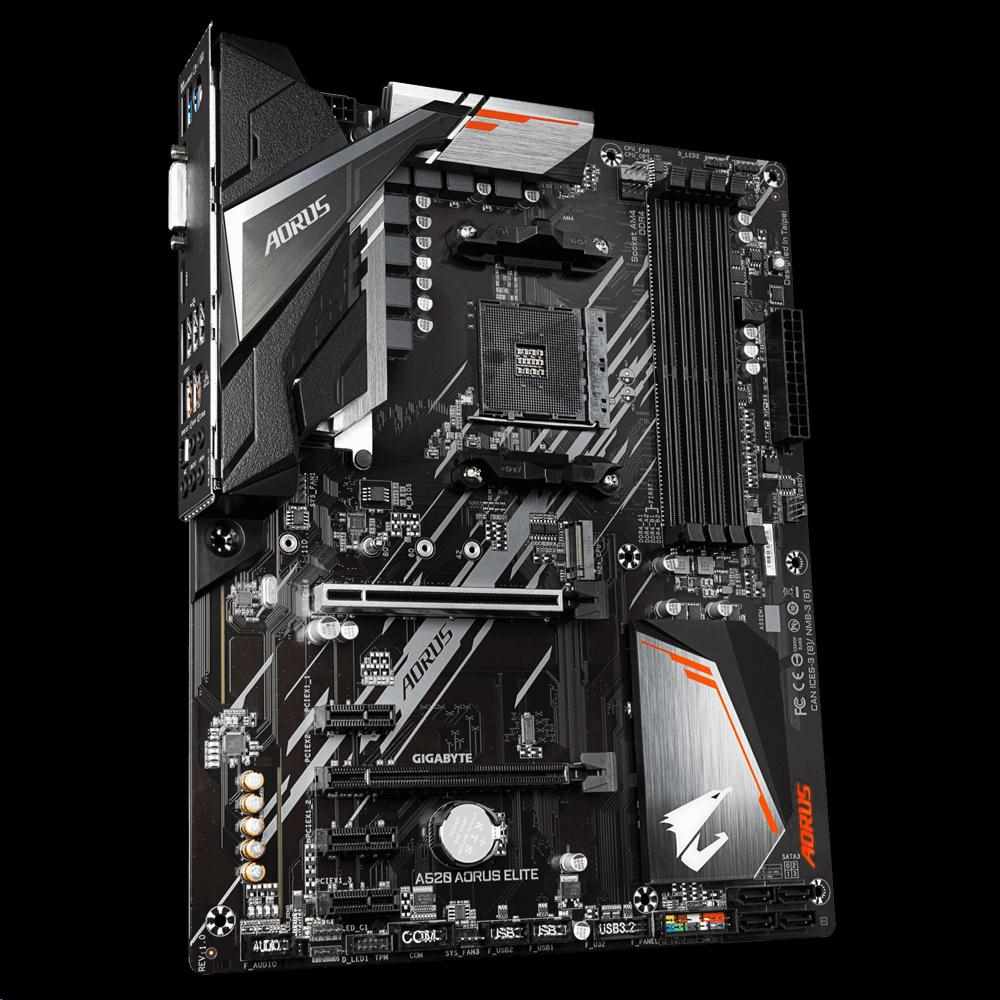

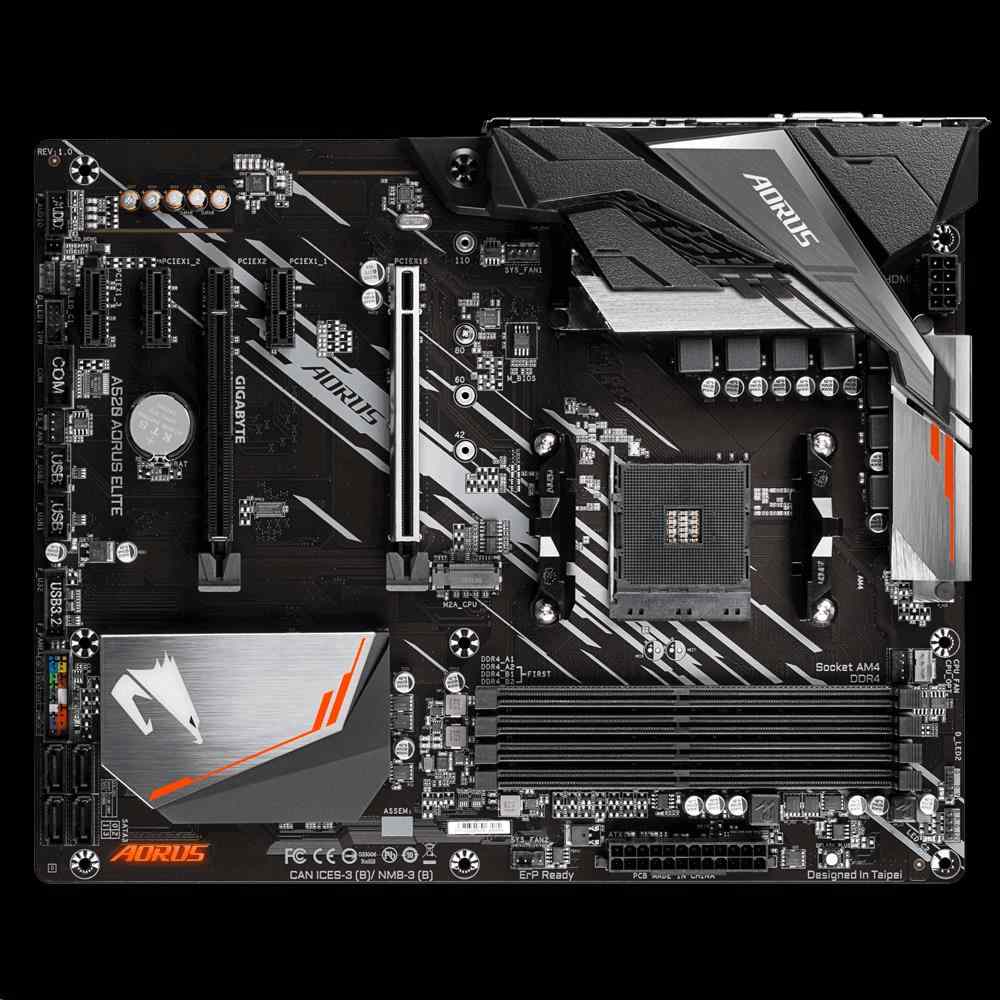

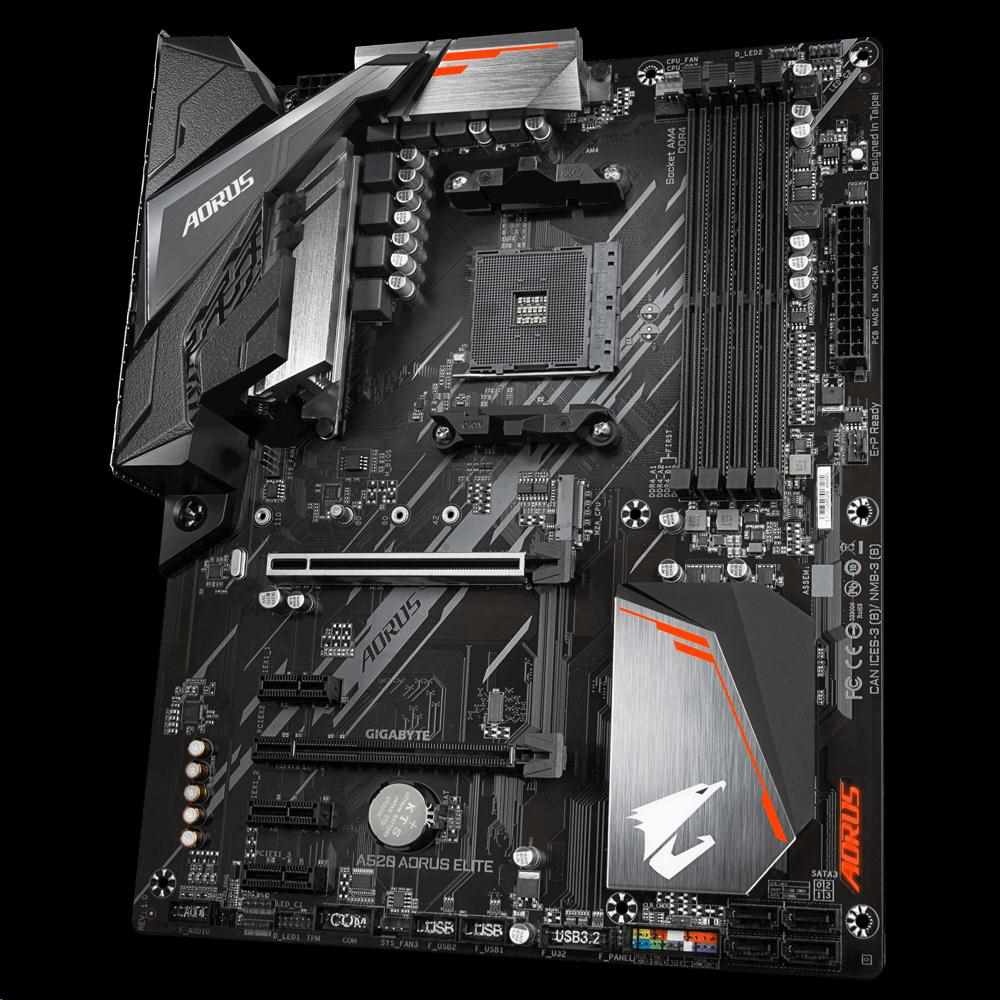

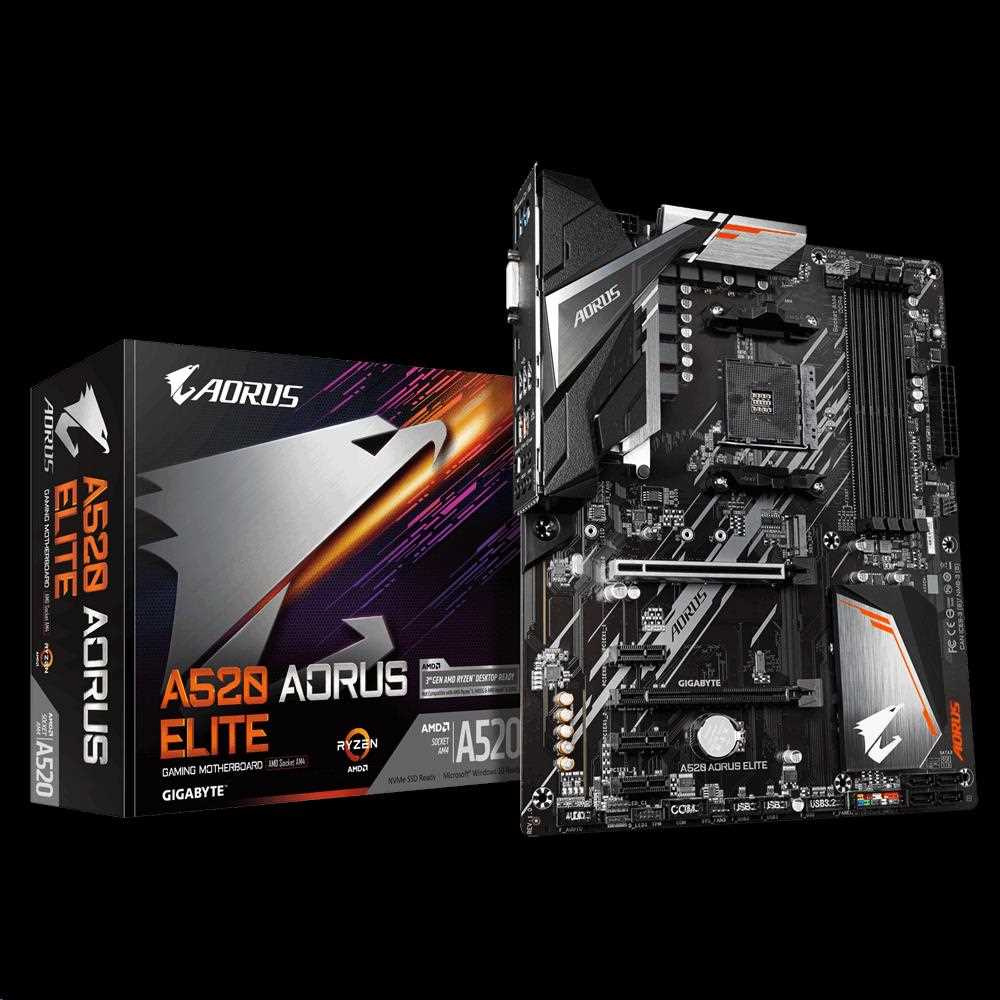

GIGABYTE MB Sc AM4 A520 AORUS ELITE, AMD A520, 4xDDR4, HDMI, DVI

AMD A520 AORUS Motherboard with Pure Digital VRM Solution, ALC1200 Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Pre-installed IO Shield Design

Supports 3rd Gen AMD Ryzen™ Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
AMP-UP Audio with ALC1200 and High End Audio Capacitors
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
HDMI, DVI-D Ports for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation

TECHNICAL SPECIFICATIONS

CPU	AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors (Please refer "CPU Support List" for more information.)
Chipset	AMD A520
Memory	1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 2. 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 4. Dual channel memory architecture 5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules 6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 7. Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB
Audio	Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion Slots	Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) 3 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3) * The PCIEX1_2 and PCIEX1_3 slots share bandwidth with the PCIEX2 slot. The PCIEX2 slot becomes unavailable when a device is installed in the PCIEX1_2 or PCIEX1_3 slot.
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Storage Interface	Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
USB	CPU: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 3 x USB 3.2 Gen 1 ports on the back panel
	Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers
	Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button

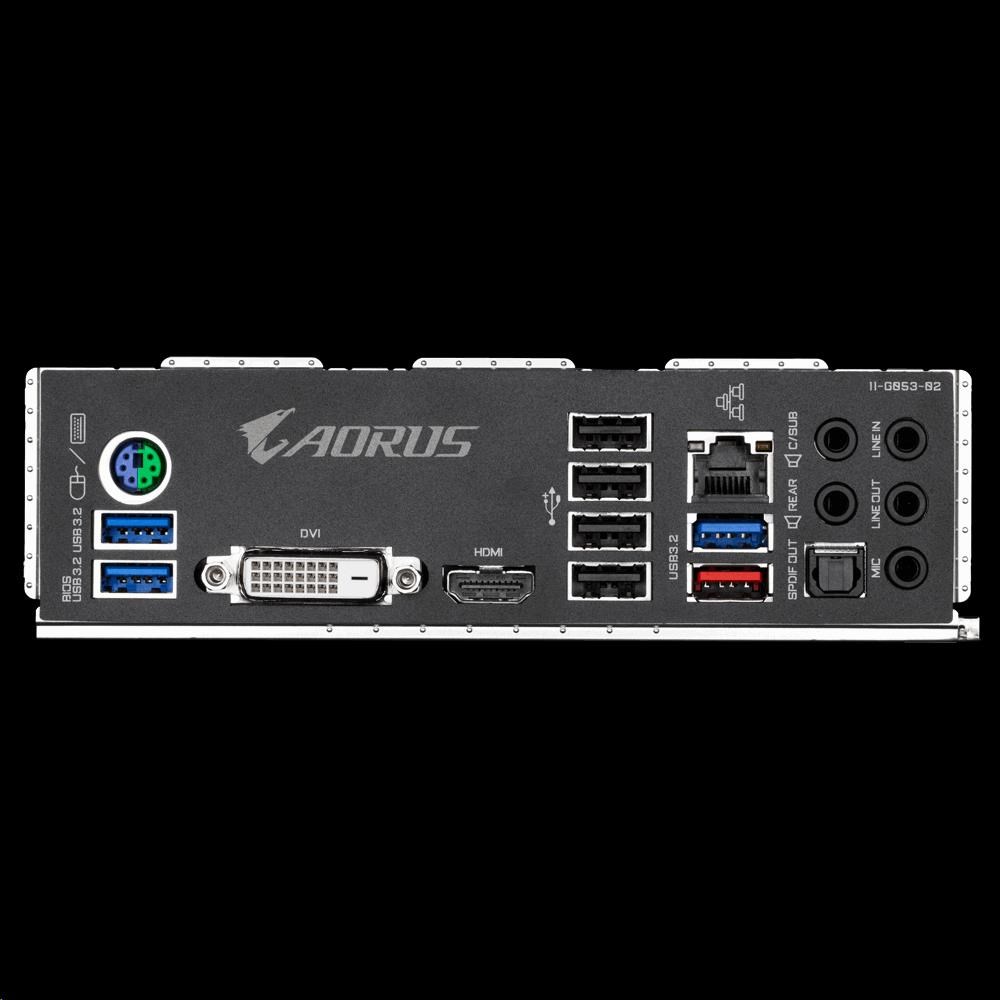

Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer 2. Support for Q-Flash Plus 3. Support for Q-Flash 4. Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
