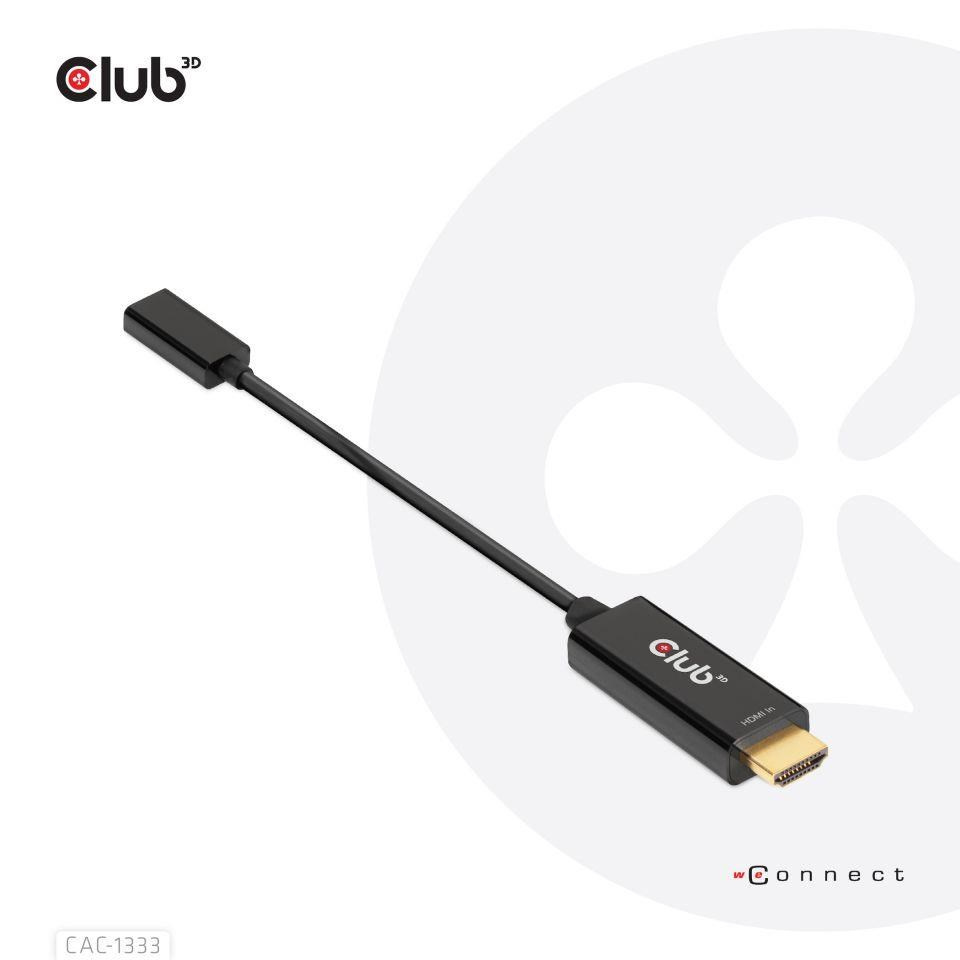

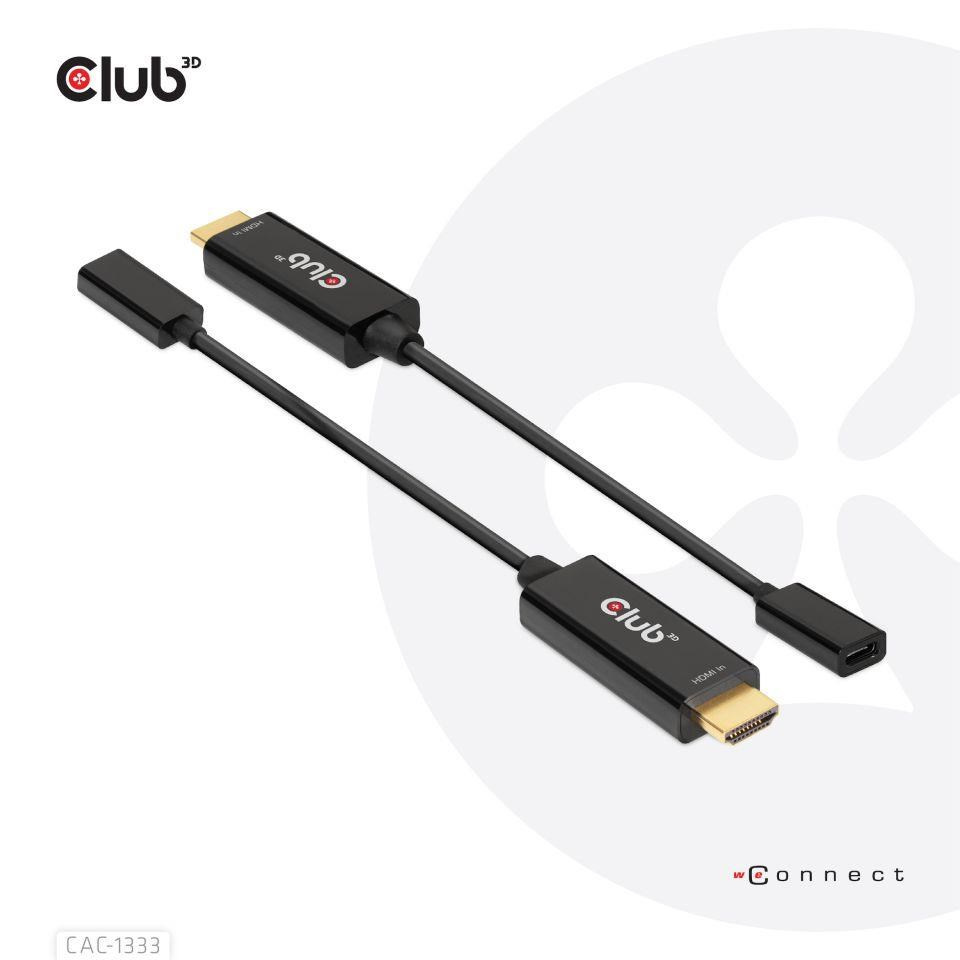

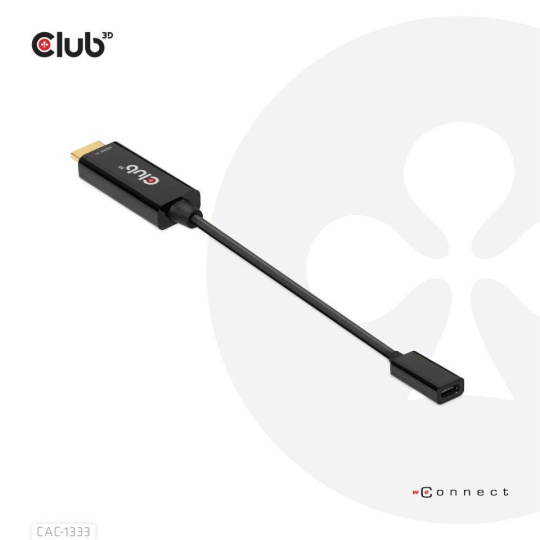

Club3D aktivní adaptér HDMI na USB-C, 4K60Hz, M/F

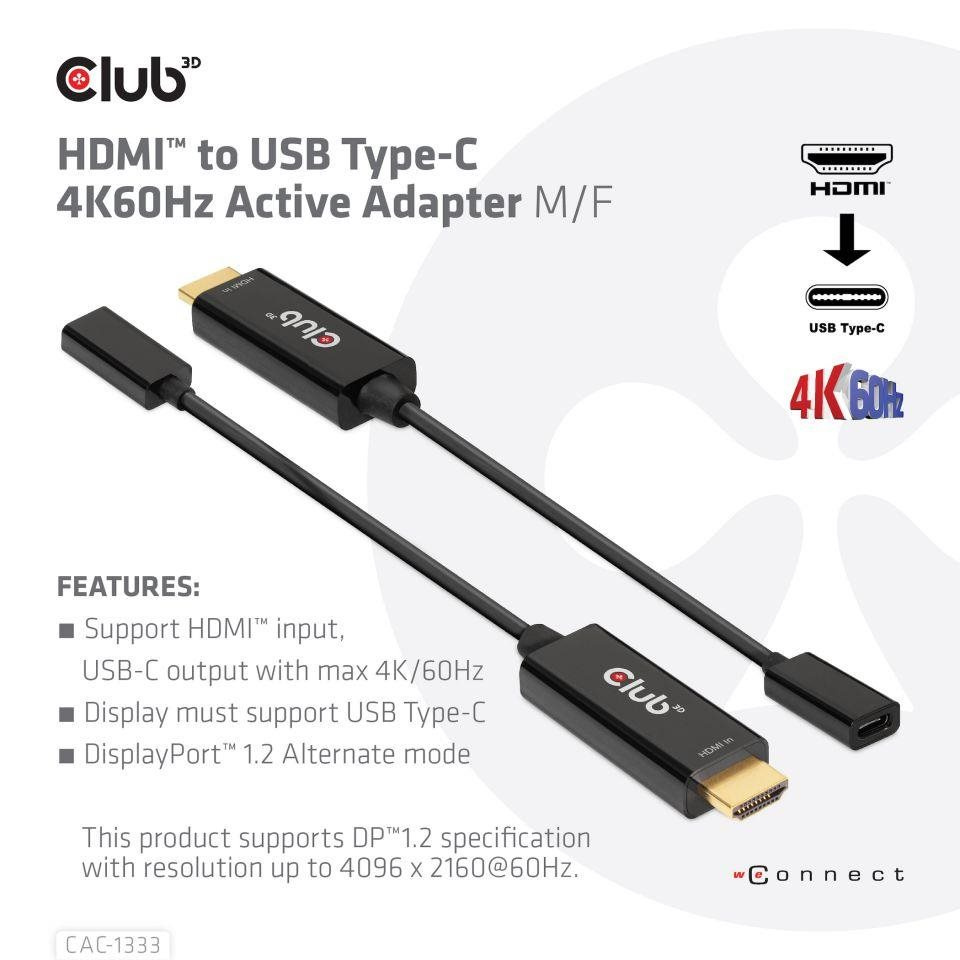

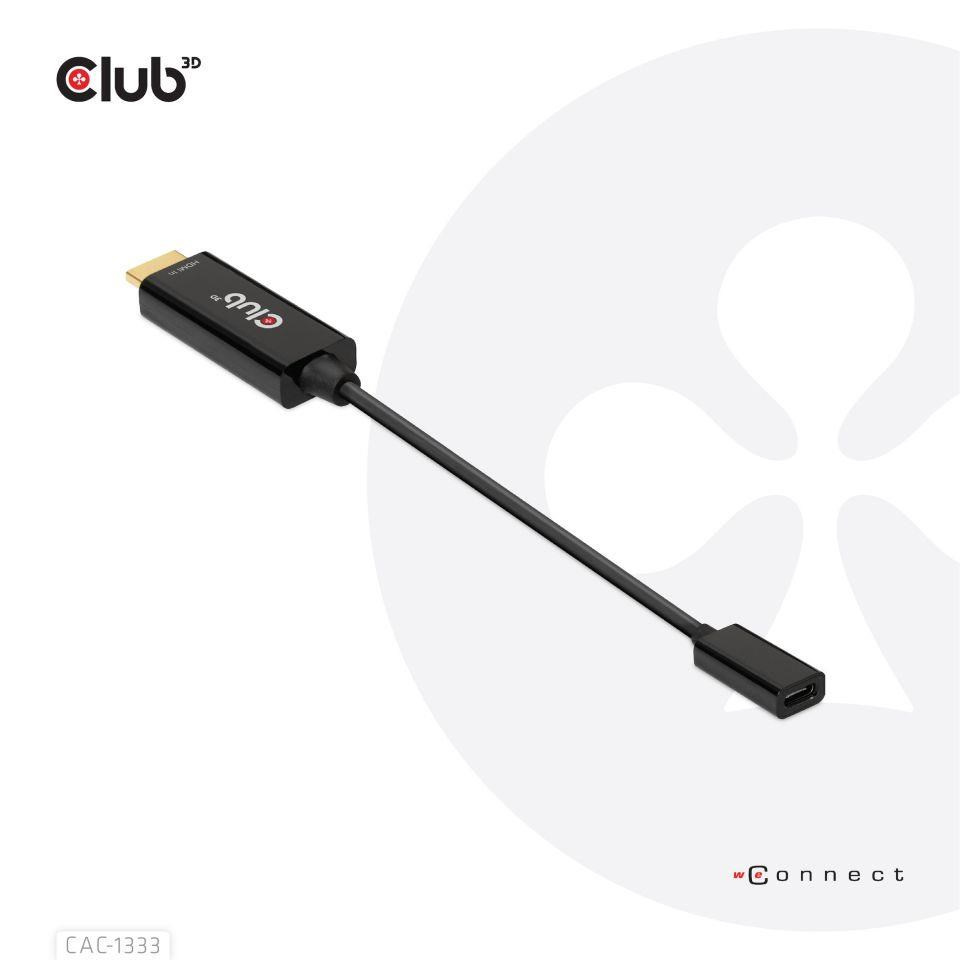

HDMI to USB Type-C 4K60Hz Active Adapter M/F

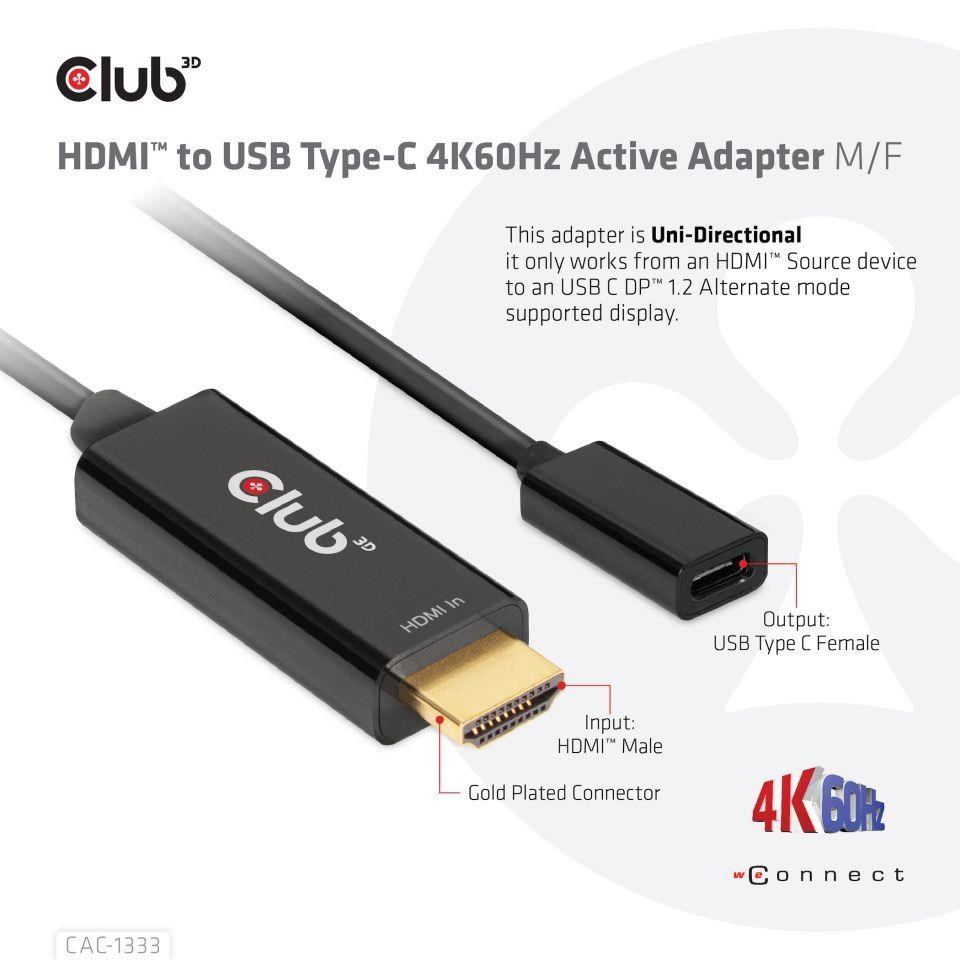

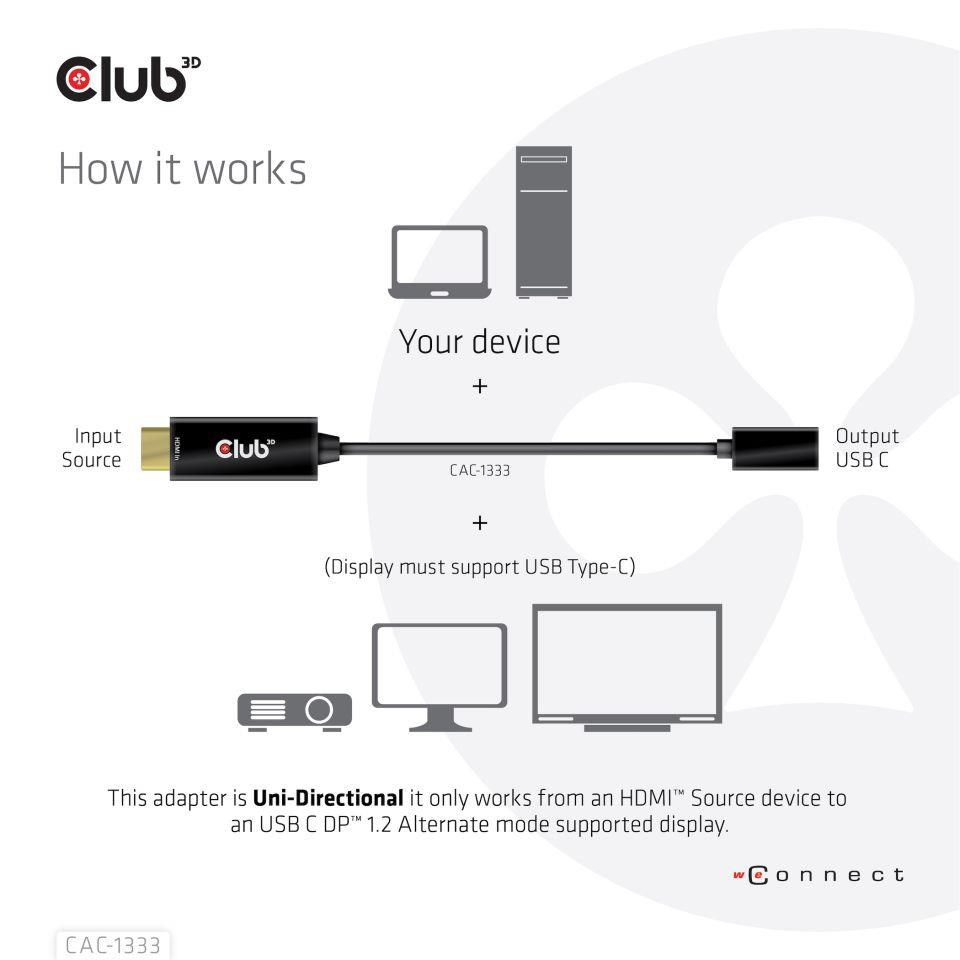

The Club 3D CAC-1333 is a HDMI™ to USB-C Adapter which allows you to transmit signal from HDMI™ source (Laptop, tablet, PC etc.) to USB-C display devices(TV, monitor, projector, etc.) through a Type-C M/M Cable. This adapter is Uni-Directional it only works from an HDMI™ Source device to an USB C DP™ 1.2 Alternate mode supported display. This product supports DP™1.2 specification with resolution up to 4096 x 2160@60Hz.
- This product has many features that enable it to perform in a superior manner. Among those features you will find:
- Support HDMI™ input, USB-C output with max 4K/60Hz
TECHNICAL SPECIFICATIONS
| HDMI | - Support 8/10/12-bit Deep color - Support HDCP1.4/2.2 - Support Status and Control Data Channel (SCDC) - Support Resolution up to 4Kx2K@60Hz for 4:4:4 format |
| USB-C | - Support DP 1.2 specification - Support Resolution up to 4Kx2K@60Hz - Support Four Lanes with 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) Data Rate per lane - Support Resolution up to 4Kx2K@60Hz for 4:4:4 format - Support 8/10/12-bit Deep Color - Support Hot-Plug Detect - Powered thru USB Type-C at 5V/ 500mA Max. |
| OS Support | All |
| In the box | CAC-1333 HDMI™ to USB Type-C 4K60Hz Active Adapter M/F |
| Available Interfaces | Input: HDMI™ Male Output: USB Type-C Female |

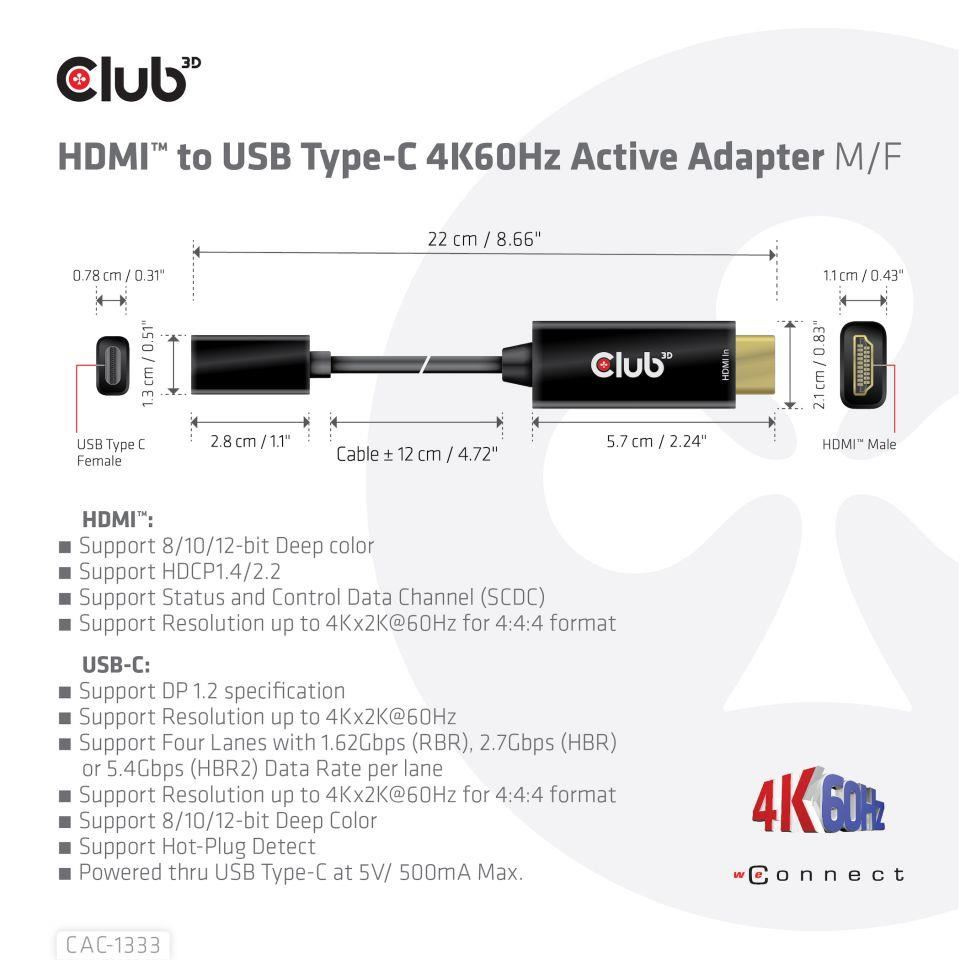

| Other info | - Box size: 6 x 24 x 3.5 cm / 2.36 x 9.45 x 1.38 " - Total Length: 22 cm / 8.66" - Connector dimensions: - HDMI™ Connector: 5.7 x 2.1 x 1.1 cm / 2.24 x 0.83 x 0.43" - USB Type-C: 2.8 x 1.3 x 0.78 cm / 1.1 x 0.51 x 0.31" - Device Weight: 22 gr / 0.77 oz - Box Weight: 28 gr / 0.99 oz - LDPE Bag Weight: 8 gr / 0.28 oz - Total Weight: 58 gr / 2.04 oz - Meets ROHS, FCC, and CE EMI requirements |
.
ParametryPorovnání
Specifikace kabelu / redukce
Adaptér, Redukce
Input
HDMI
Output
USB-C
