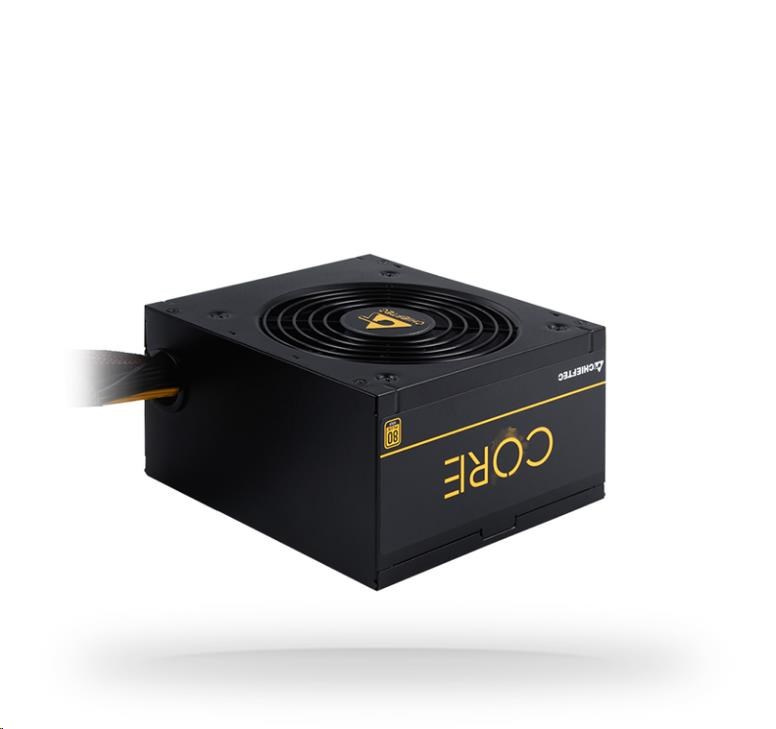

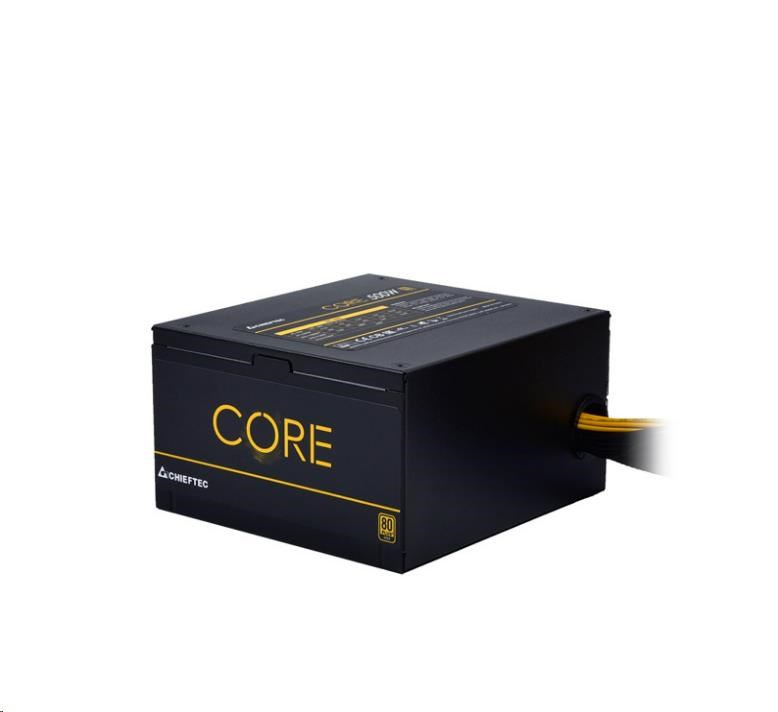

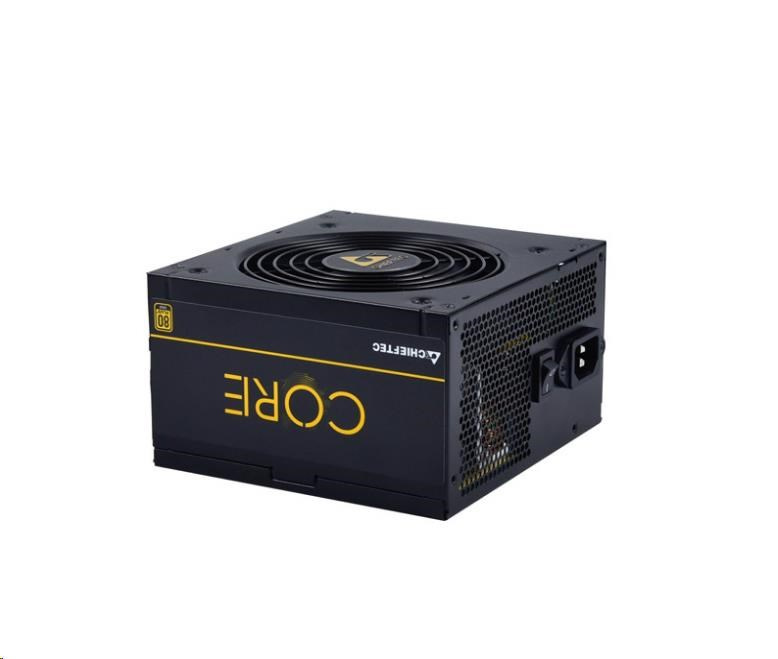

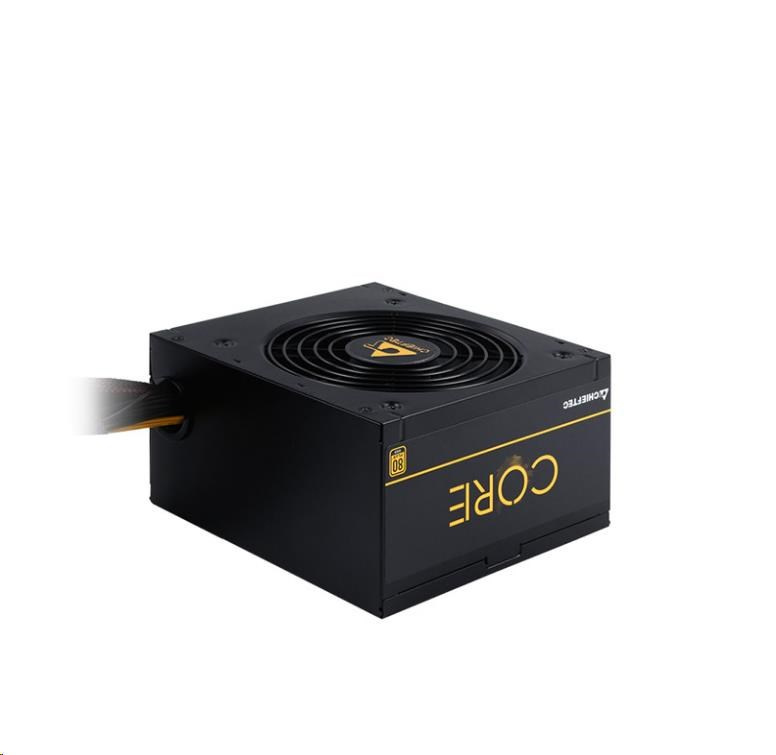

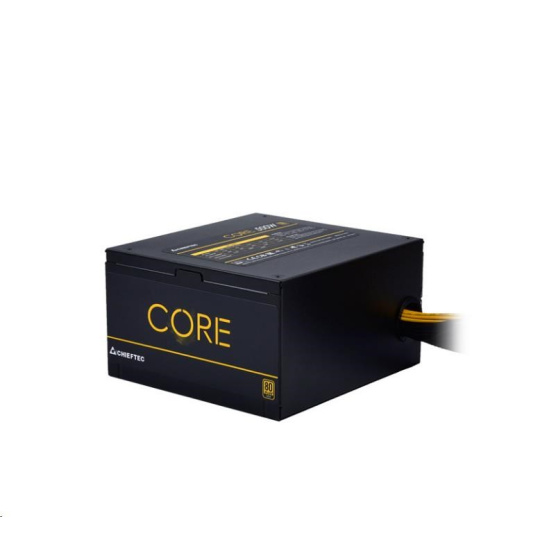

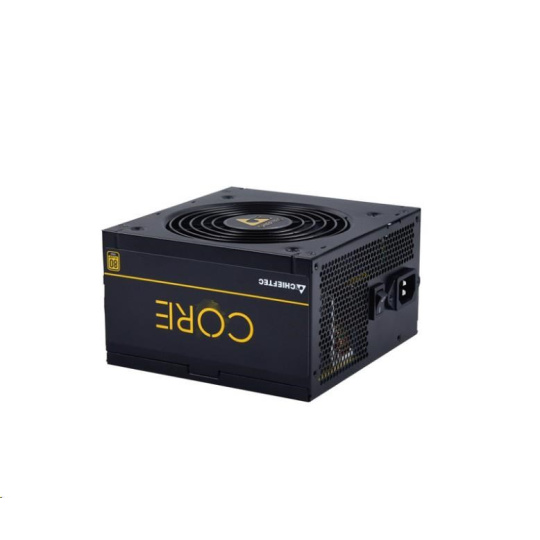

CHIEFTEC zdroj Core Series BBS-500S, 500W, PFC, 12cm fan, 80+ Gold
CHIEFTEC BBS-500S
- 80 PLUS Gold Efficiency
- Compact size with only 140mm depth
- 500-700W power output
- Motherboard, CPU and PCI-E cable lengths of 650mm
With the Core Series, Chieftec has brought an 80 PLUS Gold certified PSU to market, offering the best possible value for money. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is ideal for customers who want top-tier power output at the most attractive price.
TECHNICAL SPECIFICATIONS
| PERFORMANCE | |
| Model | Core 500W |
| Article no. | BBS-500S |
| EAN code | 0753263076120 |
| Weight (without/with package) | 1.65kg / 2.06kg |
| AC Input | 100-240V / 8.0A |
| Frequency | 47 - 63Hz |
| +5V | 18A |
| +3,3V | 18A |
| +5V & +3,3V combined | 100W |
| +12V 1 | 492W / 41A |
| +12V 2 | - |
| +12V 1 & +12V 2 combined | - |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VsB | 2,5A / 12,5W |
| Maximum Power | 500W |
| CONNECTORS | |
| 24PIN ATX | 1 |
| 8 PIN EPS (4+4) | 1 |
| 8 PIN PCIe (6+2) | 1 |
| SATA | 4 |
| MOLEX | 3 |
| FLOPPY | 1 |
| CABLE LENGHT | |
| 24PIN ATX | 650 |
| 8 PIN EPS (4+4) | 650 |
| 8 PIN PCIe (6+2) | 500 |
| SATA | 500/150/150 |
| SATA | 500 |
| MOLEX | 500/150/150/150 |
| FLOPPY | Molex |
| FEATURES | |
| Specification | ATX 12V 2.3 |
| Form Factor | PS II |
| Efficiency | 80 PLUS Gold |
| Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
| PFC | Active PFC |
| Fan | 120mm silent fan |
| Security | OVP (Overvoltage protection) SCP (Short-circuit protection) OPP (Overload protection) No-load operation |
| Warranty | 36 Months |
.
ParametryPorovnání
*Výkon zdroje (ve W)
500
Formát zdroje
ATX
Konektory
SATA 15-pin
Konektory pro základní desku
ATX 24-pin
