CHIEFTEC skříň Uni Series/Miditower, UK-02B-OP, USB 3.0, bez zdroje, černá
Popis a parametry
Diskuse

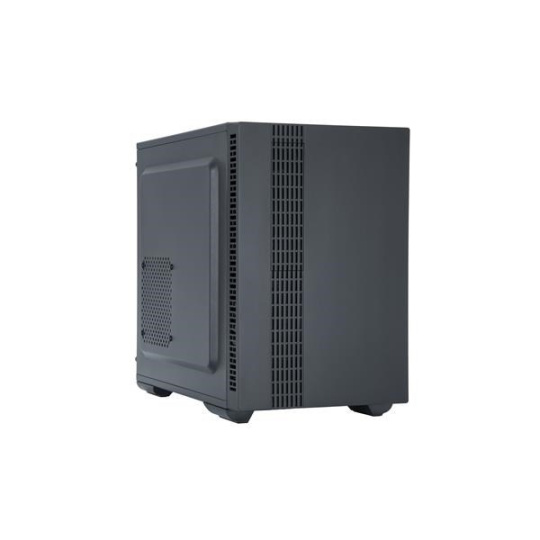

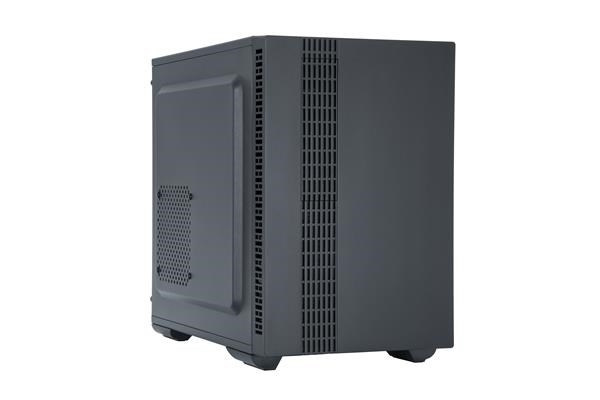

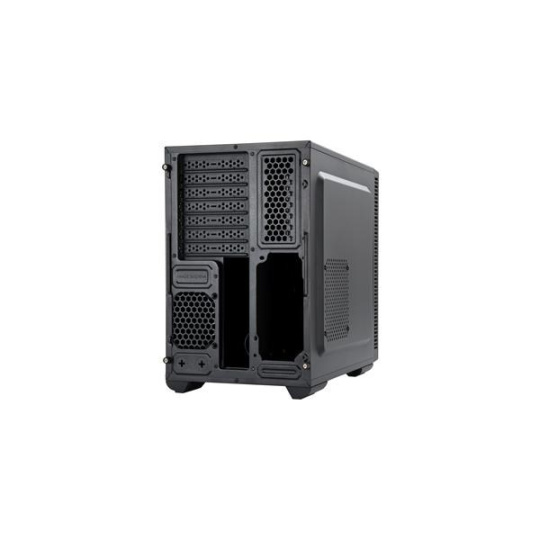

CHIEFTEC skříň Uni Series/Miditower, UK-02B-OP, USB 3.0, bez zdroje, černá
UK-02B-OP
- USB Type C connector to front panel
- Perforated Mesh Front panel to enhance airflow

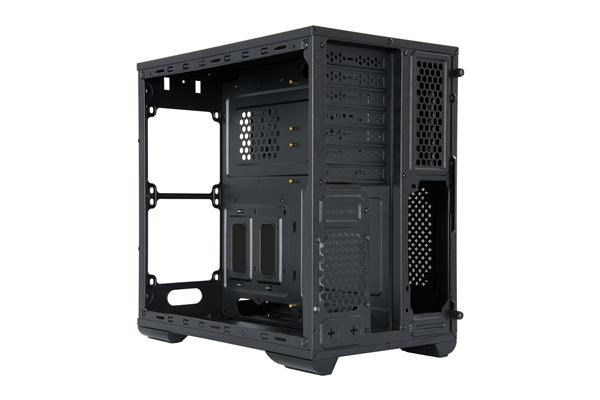

- Compact ATX Cube with ATX PSU mounting
- Including dust guards to side panels
With the just launched PC ATX chassis UK-02B-OP, CHIEFTEC adds yet another innovative model to the well renowned UNI series which offers vast possiblilities to install standard ATX components in very compact dimensions. With its slightly conservative look, the UK-02B-OP allows a variety of applications for system builders, office users, gamers and/or fans of the HTPC.
- Perforated Mesh Front panel to enhance airflow
- Compact ATX Cube with ATX PSU mounting
- Including dust guards to side panels
With the just launched PC ATX chassis UK-02B-OP, CHIEFTEC adds yet another innovative model to the well renowned UNI series which offers vast possiblilities to install standard ATX components in very compact dimensions. With its slightly conservative look, the UK-02B-OP allows a variety of applications for system builders, office users, gamers and/or fans of the HTPC.
Specifications
| Model | UK-02B-OP |
| EAN code | 0753263075932 |
| Color | Black |
| Material | 0,5mm SPCC |
| Motherboard support | Mini ITX, mATX, ATX |
| Dimension (DxWxH) | 380mm x 227mm x 342mm (Stand +17mm) |
| Weight (without/with package) | 3,4 kg / 4,2 kg |
| Drive bay external | 1x 5,25“ |

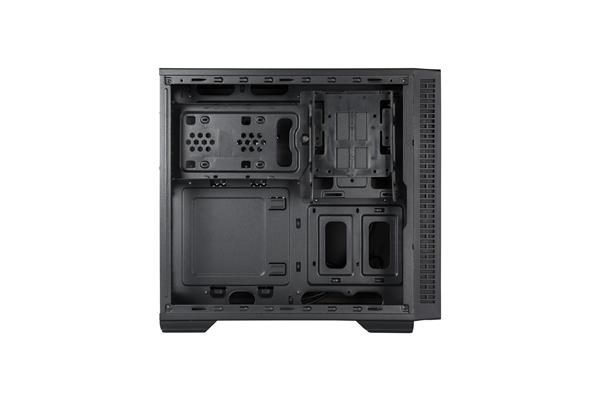

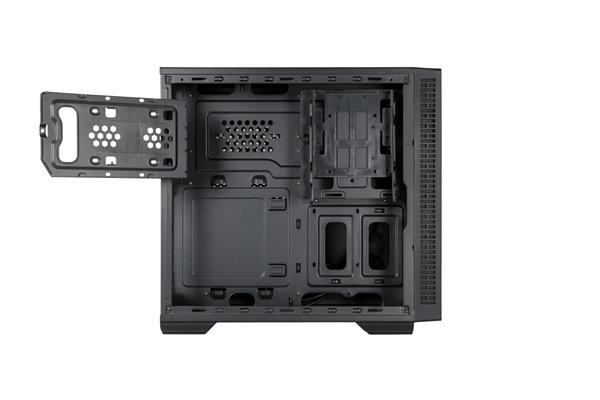

| Drive bay internal | 1x 2,5" & 2x 3,5“ or 2x 2,5“ & 1x 3,5“ |
| Power supply | ATX PSU (optional, 140mm - 200mm) |

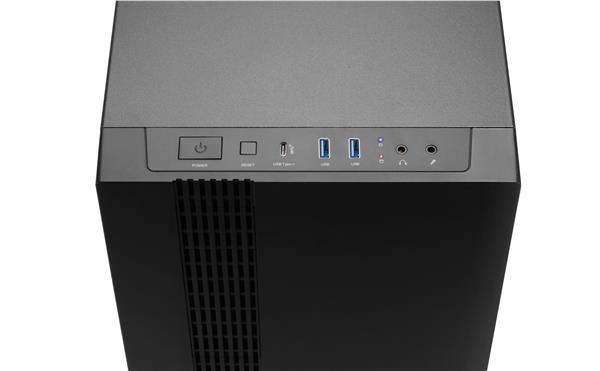

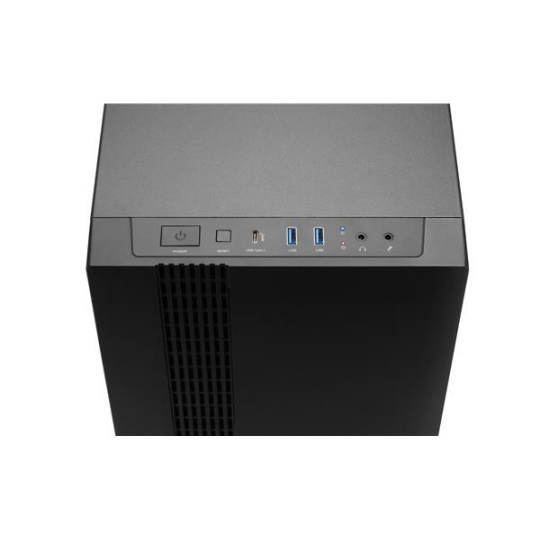

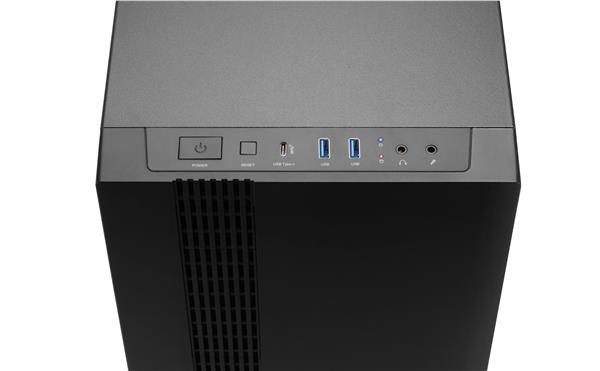

| Front I/O | 2x USB3.0, 1x USB Type C (480Mbit/s), Mic-in, Audio-out (AZALIA / HD-Audio) |
| Scope of delivery | Set of screws, detachable mesh dust filter in the front and in the side panels. |
| Expansion slots | 7 |
| Cooling Compatibility | 2x 120mm at the front 1x 80mm at the rear |
| CPU cooler height (max.) | 110mm |
| VGA card length (max.) | With fan: 290mm, without fan: 315mm |
| Warranty | 24 Months |
ParametryPorovnání
Provedení skříně
Midi Tower
Barva skříně
Černá
Počet pozic 5.25"
1
Počet pozic 3.5" (HDD)
2
Počet pozic 2.5" (SSD)
1
Vybavení PC skříně
Přední Audio panel
