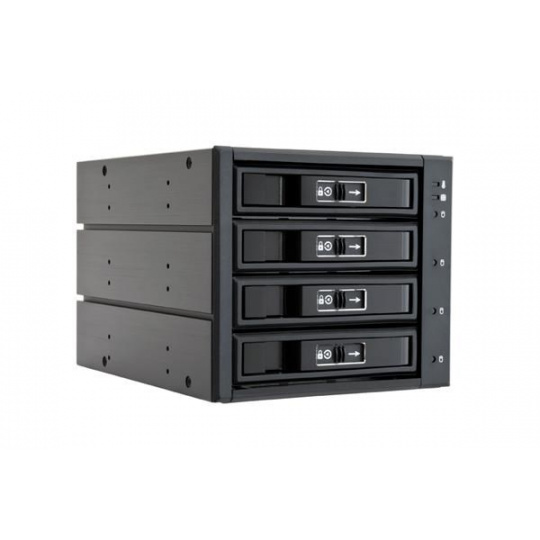

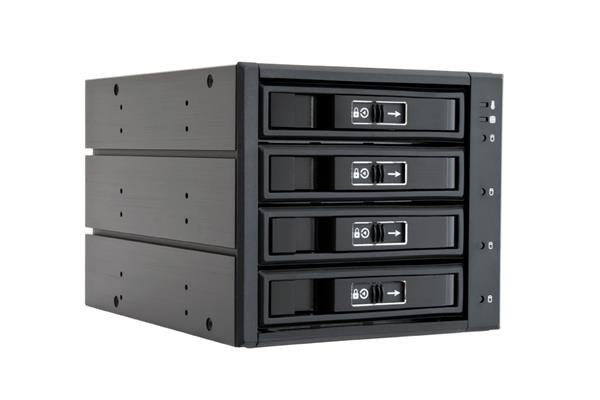

CHIEFTEC SATA/SAS Backplane CBP-3141SAS, 3 x 5.25" bays for 4 SAS/S-ATA HDDs, Hot-Swap, full aluminium
CHIEFTEC SATA/SAS Backplane CBP-3141SAS, 3 x 5.25" bays for 4 SAS/S-ATA HDDs, Hot-Swap, full aluminium
http://www.chieftec.eu/en/accessories/sas-sata-backplanes/cbp-3141sas.html

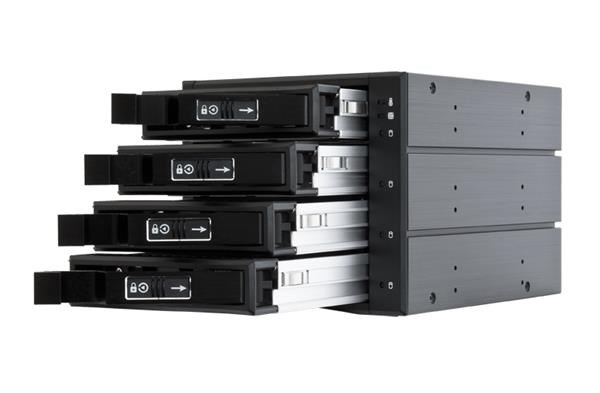

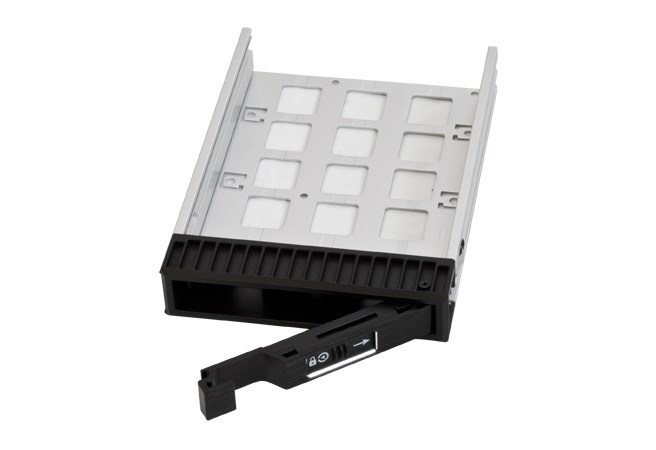

CBP-3141SAS – The new backplane CBP-3141SAS sets the standard with the patented anti-vibration design. Like no other backplane makes it suitable for diverse applications. The chassis is made of high quality aluminum and requires only three 5.25" and provides space for four 3.5" or 2.5" hard drives or SSDs. Supports both SATA I/II/III and SAS I/II.
Features:
- Professional Data Backup
- Hot Swap
- Plug & Play compatible

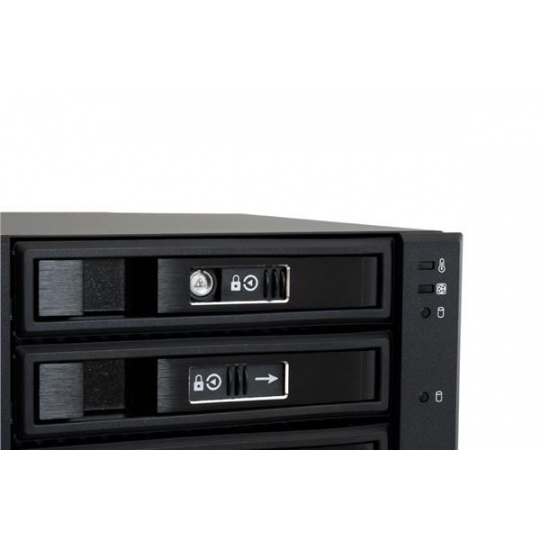

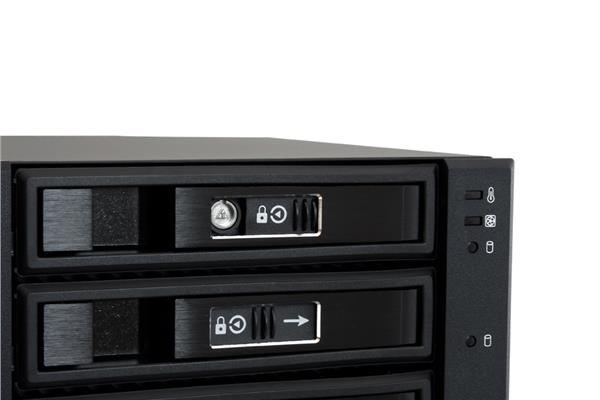

- Lock mechanism with key
- Space saving
Technical Data:
Interface (HDD/SSD):
| SATA I, SATA II, SATA III, SAS I/II
|
Dimension (DxWxH):
| 202mm x 146mm x 126mm
|
Weight:
| 1,79 kg
|
Form Factor:
| 3x 5,25" bays for 4x SATA/SAS HDDs/SDDs (3,5" or 2,5")
|

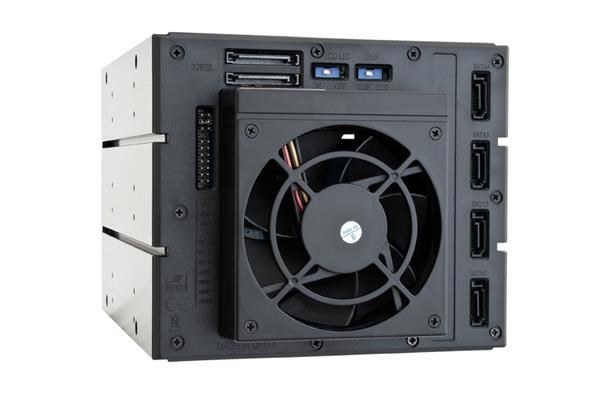

Cooling:

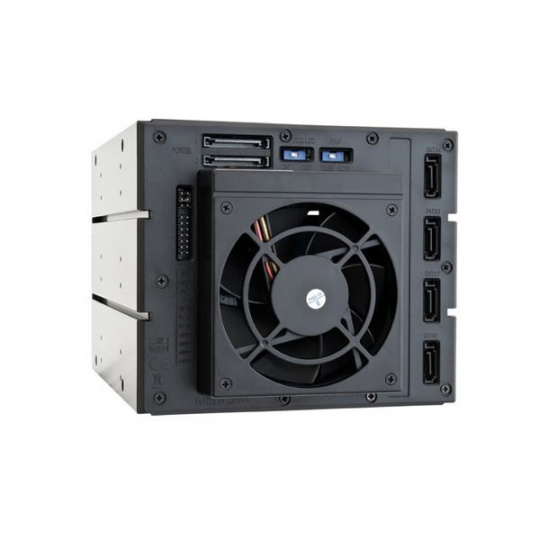

| 80mm fan
|
Power Connector:
| 2x SATA
|
Data Interface (ext.):
| 4 x SATA
|
Supported Raid-Level:
| No Raid controller is included
|
Special Features:

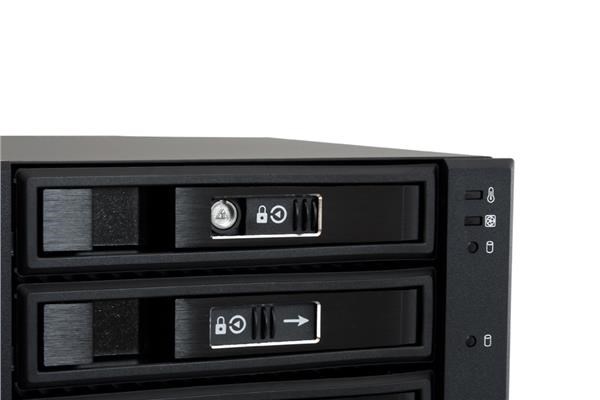

| Fan Failure detection LED
|
Reset switch for buzzer alarm
| |
Overheating LED
| |
Up to 6Gbps data transfer rate (SATA III / SAS)
| |
Scope of delivery:

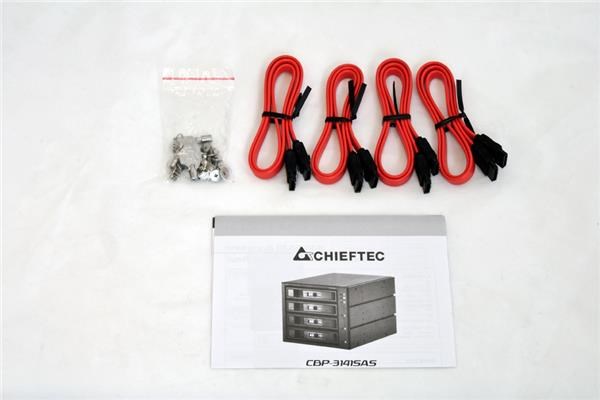

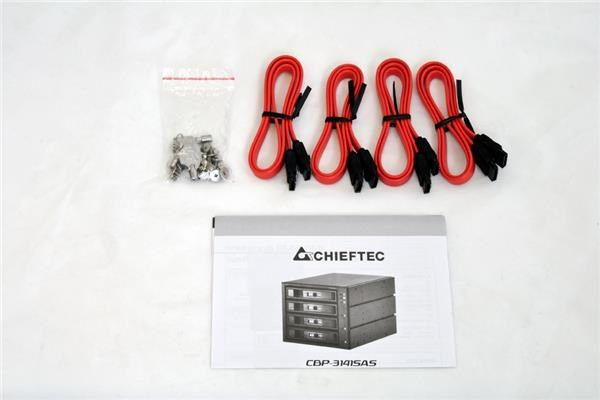

| Backplane, 4x SATA cable (60cm), set of screws, User manual (engl.)
|
.
